10-60° Galvanized Steel PV Solar Carport Mounting Systems

Количество мин заказа : набор 5 Цена : USD500-1000/set
Упаковывая детали : Коробка коробки, деревянный паллет, упаковка пачки пояса и другие виды пакета обеспечить продукты sa Время доставки : 15-25 дней работы
Условия оплаты : L/C, D/A, D/P, T/T, западное соединение, MoneyGram Поставка способности : 30MW/month
Место происхождения: КИТАЙ Фирменное наименование: TIANFON
Сертификация: SGS,ISO 9001,ISO 14001,OHSAS 18000 Номер модели: Солнечные системы автопарка

Подробная информация

ИМЯ: Гальванизированная стальная система установки автопарка PV солнечная Тип: включено-выключено решетка
Поверхностное покрытие: Гальванизированный, анодированный Максимальная скорость ветра: 60М/С
Максимальн Снег Нагрузка: 1.4КН/м2 Применение: Парковка частных, правительства и предприятия
Угол наклона: 10-60°
Высокий свет:

Galvanized Steel Solar Carport Mounting Systems

,

60° Solar Carport Mounting Systems

,

10 Angle Solar Carport Mounting Systems

Характер продукции


10-60° Customized Angle Galvanized Steel PV Solar Carport Mounting Systems

Photovoltaic carport is the combination of photovoltaic and carport roof. It can not only achieve all the functions of a traditional carport, but also bring benefits to the owners of power generation.
Generally, a steel structure bracket is used, which is simple, generous, stylish and beautiful, and is a clean and environmentally friendly new energy source, which effectively relieves social environmental and energy pressure.

Most of the photovoltaic carports are of modular design, which can be used alone or in combination, which is easy to expand, ranging from a few parking spaces to as many as hundreds of parking spaces, which is more flexible.​

 Product Parameter:


 Installation Angel  5deg-15deg
 Max Wind Speed  up to 42m/s
 Max Snow Load  up to 1.4KN/m2
 Span(E-W)  5000mm
 Standard ground clearance  2500mm
 Panel array  Landscape
 Rows  4/5/6
 Application  Private, Government and Enterprise’s Parking Lot



Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um

Warranty: 10 years warranty and 25 years duration

Lowest height: 2.5m

Width of space: 2.5~3m

Length of space: 6m

Surface Treatment: Hot-Dipped Galvanization or Anodizing

Fastener: Stainless steel SS304


 Benefit:

☀ Easy Installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.


☀ Superb Quality
All raw materials of components are made of aluminum (anodized 6005-T5) and stainless steel (SUS304), which reach the maximum degree of product's weather resistance and the stability of the structure.


☀ Flexible and Stable
With the adjustable design, maximally absorbs the size error caused by the construction, and guarantees the stability and beauty of the solar mounting structure.

☀ Extraordinarily Environment-friendly Performance
All materials can be 100% recycled, and no waste is generated, which fully embodies the concept of energy saving and environmental protection of the solar photovoltaic power generating system.

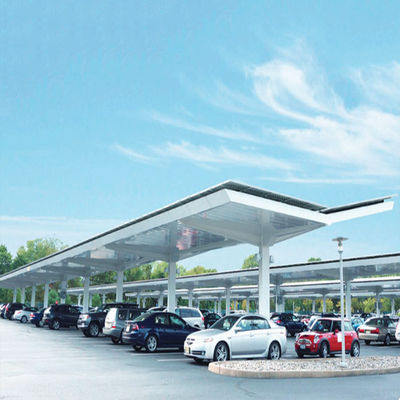

10-60° Galvanized Steel PV Solar Carport Mounting Systems 0

 Installation:

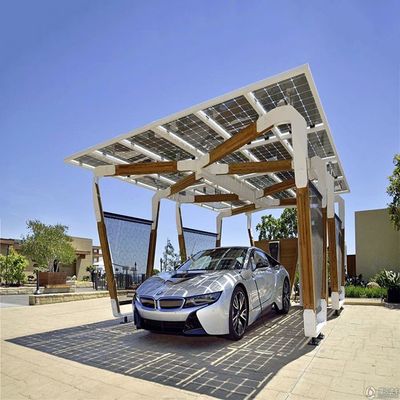

10-60° Galvanized Steel PV Solar Carport Mounting Systems 1
 Packaging & Delivery:

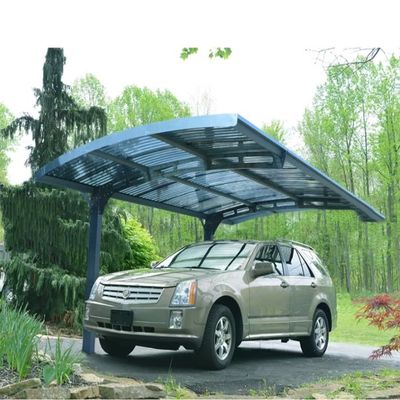

10-60° Galvanized Steel PV Solar Carport Mounting Systems 2


► Port: Tianjin, Shanghai, Qingdao

► Payment Terms: L/C,D/A,D/P,T/T

 Certification:

10-60° Galvanized Steel PV Solar Carport Mounting Systems 3
10-60° Galvanized Steel PV Solar Carport Mounting Systems 4
