| Brand Name: | TIANFON |
| Model Number: | Струбцины панели солнечных батарей |
| MOQ: | 2000 НАБОРОВ |
| цена: | USD5-50/set |
| Supply Ability: | 200000 наборов/месяц |

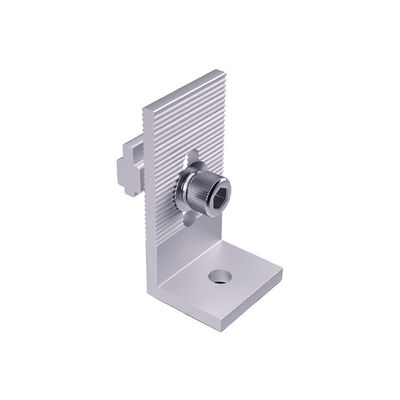

No drilling Frameless Aluminum Mid End Solar Panel Clamps Mounting Kits
Short Description:
The clamps are made of anodized aluminum/galvanized steel with the quality of corrosion-resistance and strong intensity. It can be used for different PV kits and different PV arrangements whichcan be interchange randomly.
Product Feature:
Flexibility: roof mount, pole mount, ground mount, ballasted mount, etc both for on grid and off-grid systems, for framed and frameless panels.
Easy Installation: All kits are highly assembled in factory. The tilt in module can be located in any location of rails.
MOQ: Sample orders are allowed.
Delivery Time: 7-15 days when orders are confirmed.
|
Name
|
Size
|
Material
|
Surface treatment
|
Photo 1
|
Photo 2
|
|

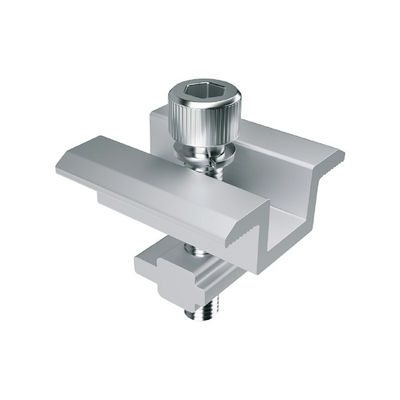

Middel clamp |
35/40/45/50mm |
Aluminum 6063-T5 |
Anodizing |
|
|
|
End clmap |
35/40/45/50mm |
Aluminum 6063-T5 |
Anodizing |
|
|
|
Middle clamp for thin module |
80/100/120mm |
Aluminum 6063-T5 |
Anodizing |
|
|
|
End clamp for thin module |
80/100/120mm |
Aluminum 6063-T5 |
Anodizing |
|
|
|
Trapezoidal clamp |
345mm |
Aluminum 6063-T5 |
Anodizing |
|
|
|
Lysaght clamp |
345mm |
Aluminum 6063-T5 |
Anodizing |
|
|
|
Standing seam roof clamp |
345mm |
Aluminum 6063-T5 |
Anodizing |
|
|
Application:
Our Certificates:
Packaging & Shipping:
► Place of loading: Basic Seaport, China
► Package: strong and long distance transportation package
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
► Payment Terms: L/C,D/A,D/P,T/T
